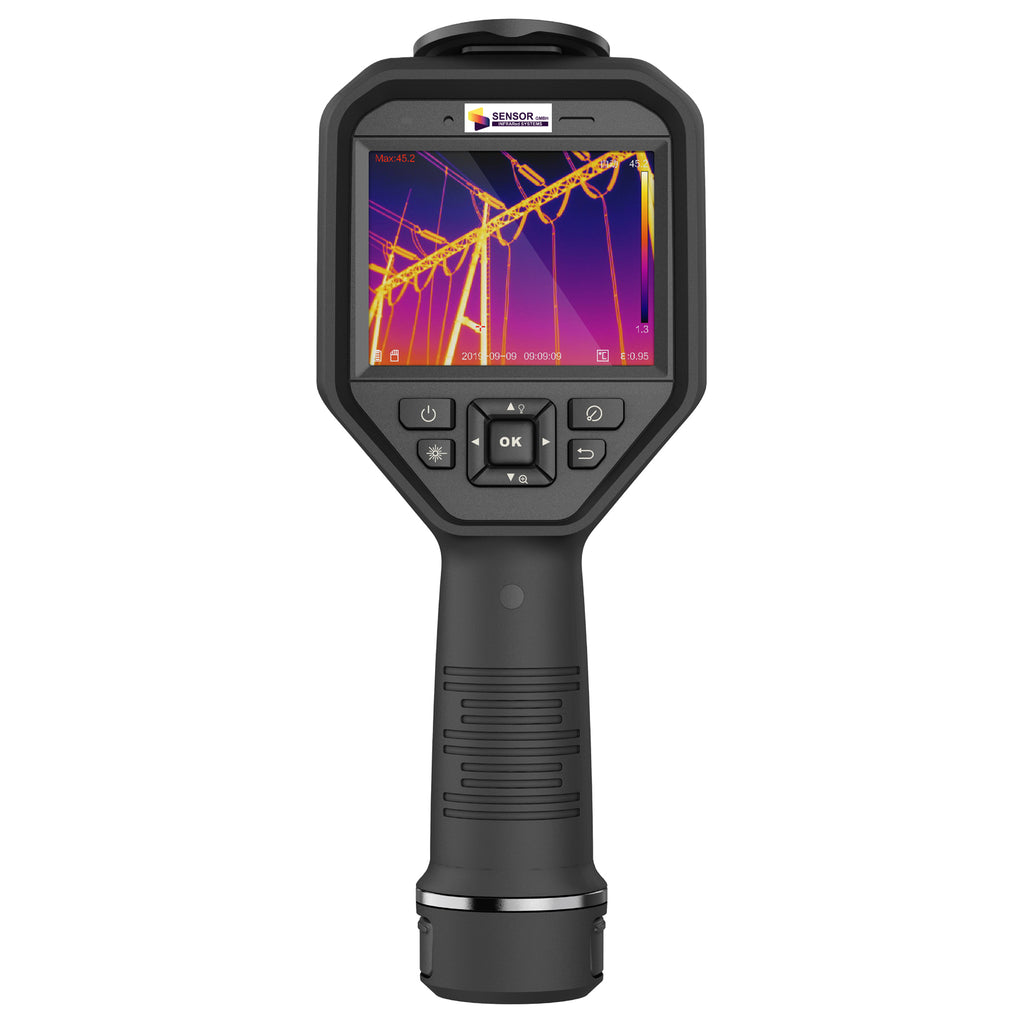

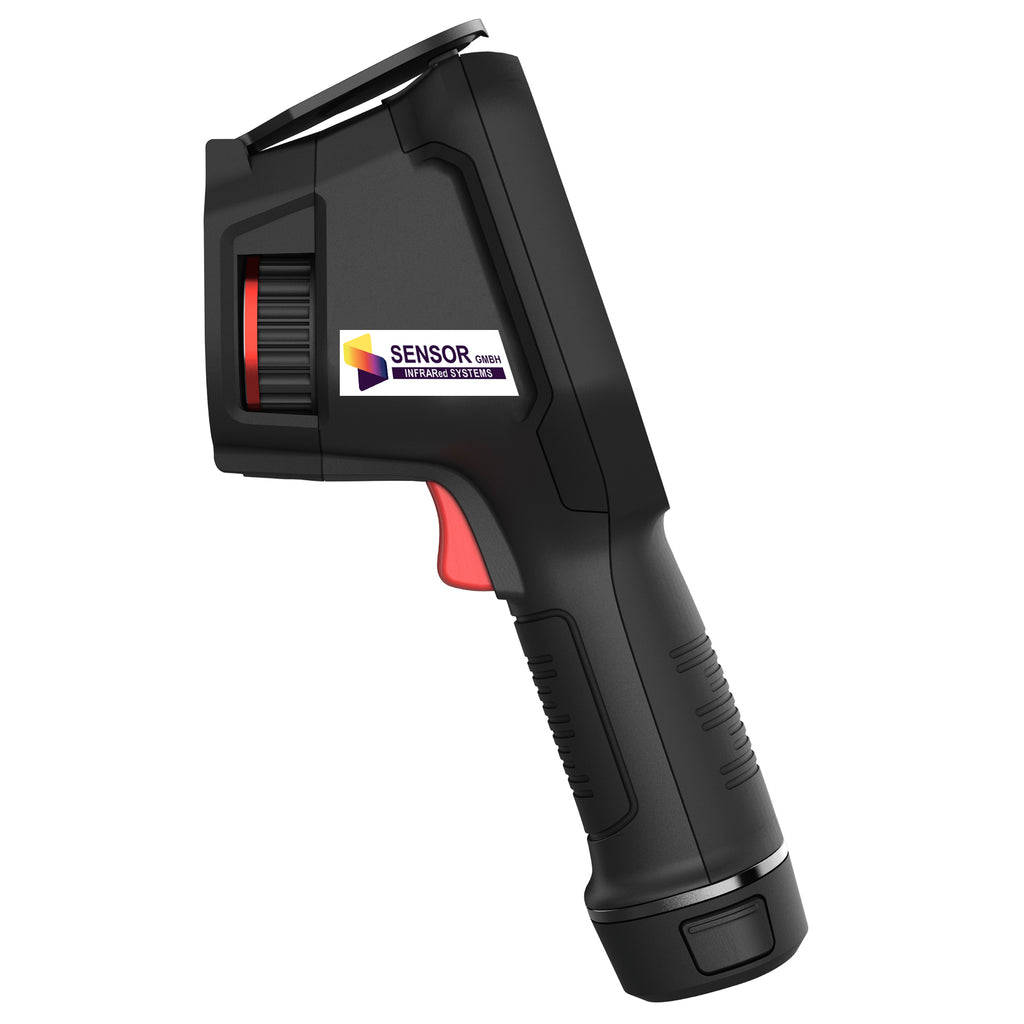

SENSOR IR-M384

SENSOR IR-M384 Thermal Imaging Camera 37.5° × 28.5° | 384 × 288 pixels | Picture-in-Picture | Wi-Fi | 30 Hz

The SENSOR IR-M384 thermal imaging camera features a built-in high-sensitivity IR detector and a high-performance sensor to capture temperature changes and measure real-time temperatures. The temperature measurement range extends from −20 °C to 550 °C with an accuracy of ±2 °C or ±2 %.

SuperScene+ Algorithm

When activated, key temperature measurement parameters are configured automatically, eliminating the need for manual adjustment. For example, emissivity and measurement distance are set automatically.

Product Highlights

• Thermal resolution (IR): 384 × 288 (110,592 pixels)
• SuperIR: 768 × 576 (442,368 pixels)
• NETD: < 30 mK (@ 25 °C, F# = 1.0)
• Temperature measurement range: −20 °C to 550 °C
• Accuracy: Max. ±2 °C / ±2 %
• Measurement presets: Center, Hot Spot, Cold Spot, user-defined Point / Line / Area
• Manual focus
• Optics (Field of View): 41.1° × 30.5°
• Geometric resolution (IFOV): 1.87 mrad
• High-performance 30 Hz frame rate
• 3.5" LCD touchscreen with 640 × 480 resolution
• Video: MP4 recording and radiometric video


Technical Specifications

• Thermal & Optical System
• Infrared Sensor: 384 × 288 pixels
• SuperIR: 768 × 576 (442,368 pixels)
• Temperature Range: −20 °C to 550 °C
• Thermal Sensitivity (NETD): ≤ 30 mK (@ 25 °C, F# = 1.0)
• Accuracy: ±2 °C / ±2 %
• Visual Camera: 8 MP visible-light camera with bi-spectrum fusion
• Optical Field of View: Wide-angle 37.5° × 28.5°
• Minimum Focus Distance: 0.1 m
• Spot Size: IFOV 1.87 mrad
• Focus: Manual
• Frame Rate: 30 Hz
• Imaging & Display
• Image Modes: Thermal, Visual, Fusion, Picture-in-Picture (PIP)
• Display: 3.5" touchscreen (approx. 9 cm)
• Color Palettes: 7
• Digital Zoom: 1× to 8×
• Measurement & Analysis

Measurement Functions:

• Center spot
• Hot spot / Cold spot
• 10 × adjustable points
• 1 × adjustable line
• 3 × adjustable areas
• Voice Annotation: Yes, up to 60 seconds per image
• Text Annotation: Yes, up to 200 characters per image
• Illumination & Aiming
• LED Light: Integrated, 70 lumens
• Laser Pointer: Yes, Class II

Storage & Recording

• Storage Medium: Removable microSD card (64 GB)
• Image Recording: Fully radiometric images, approx. 120,000 images
• Video Recording: MP4 and radiometric video
• Connectivity
• Interfaces: Bluetooth, Wi-Fi, USB Type-C
• Wi-Fi: 802.11 a/ac/b/g/n (2.4 GHz & 5 GHz)
• Bluetooth: Version 4.2
• Power Supply
• Battery: Replaceable Li-ion battery
• Operating Time: Approx. 4 hours per battery
• Environmental & Physical
• Protection Rating: IP54
• Drop Resistance: Designed for drops up to 2 m
• Dimensions: 244 × 100 × 104 mm
• Weight: Approx. 660 g (including battery)
• Tripod Mount: UNC ¼"

Scope of Delivery

• SENSOR IR-M384 thermal imaging camera
• Quick Start Guide
• Adapter
• USB cable
• Power adapter
• 2 batteries
• Charging station
• Carrying case
• Wrist strap
• Calibration certificate
