SENSOR IR-P640

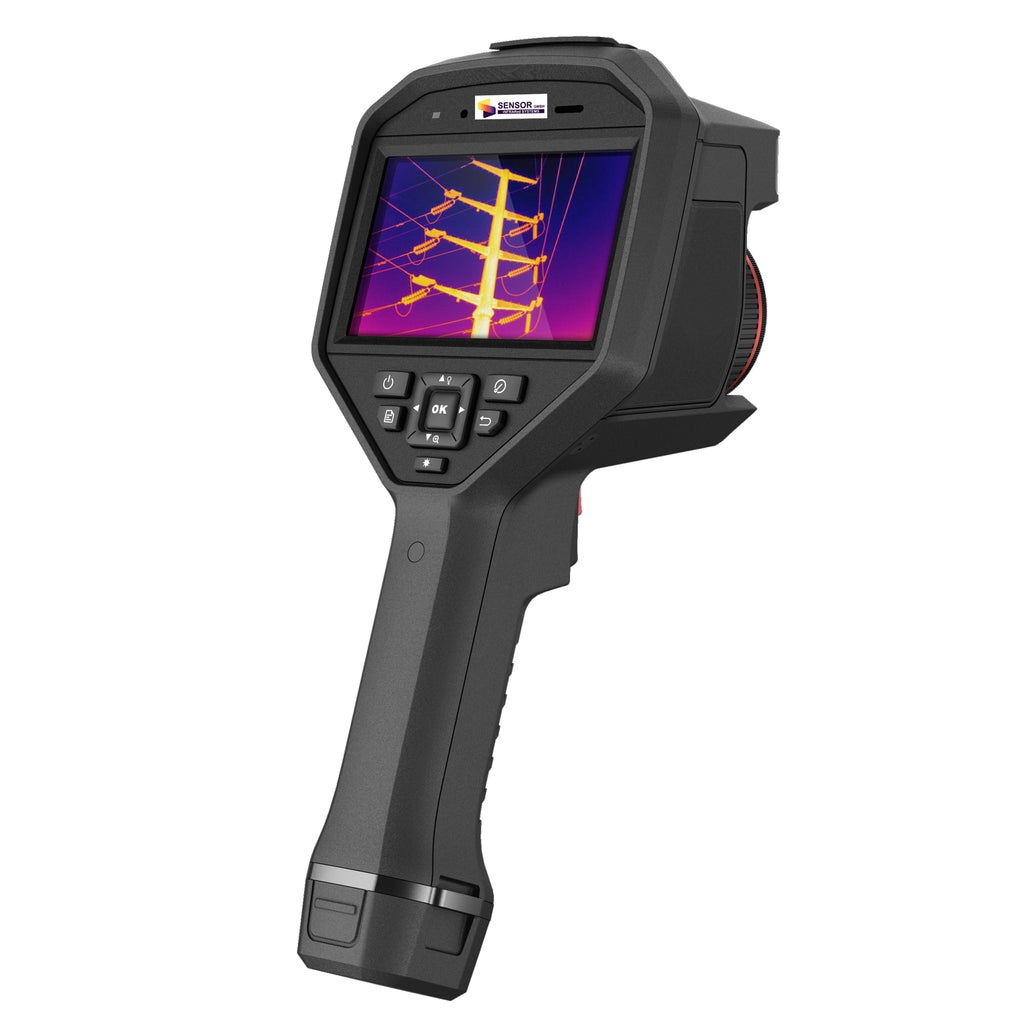

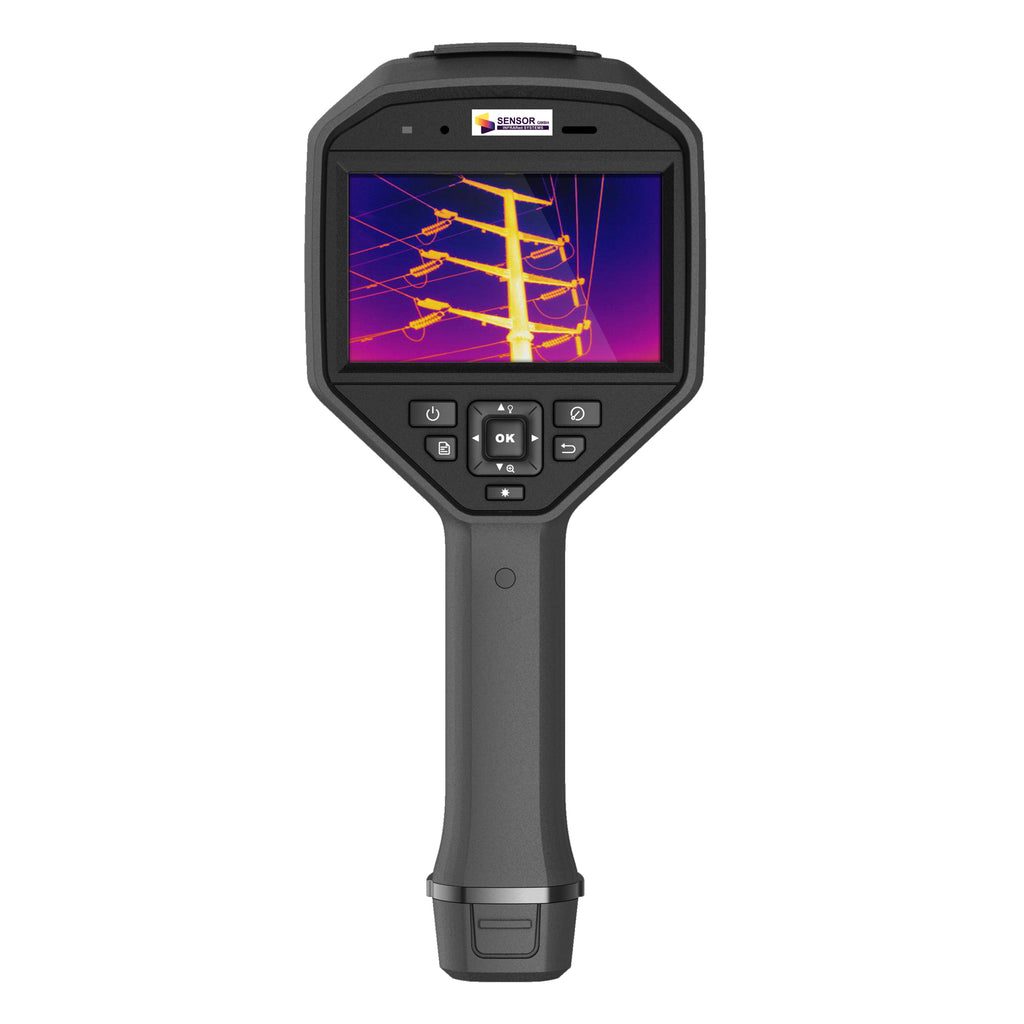

SENSOR IR-P640 High-End Thermal Imaging Camera
Focusable | 640 × 480 Pixels | SuperIR 1280 × 960 Pixels | 50 Hz

The SENSOR IR-P640 thermal imaging camera delivers ultra-high thermal resolution of 640 × 480 pixels combined with a 50 Hz frame rate for exceptionally smooth imaging.
It supports five focus modes (Laser-Assisted AF, Continuous AF, Auto Focus, Manual Focus, Touch AF), ensuring sharp images and highly accurate temperature measurements.

The built-in high-sensitivity, high-resolution IR detector and powerful sensor with a sensitivity of 0.035 °C precisely detect temperature changes and measure real-time temperatures.

Product Highlights

• Thermal resolution: 640 × 480 (307,200 pixels)
• Thermal resolution with SuperIR: 1280 × 960 (1,228,800 pixels)
• NETD: < 35 mK (@ 30 °C, F# = 1.0)
• Temperature measurement range: −20 °C to 650 °C
• Five focus modes: Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF
• HDMI output
• Built-in GPS and compass
• Accuracy: Max. ±2 °C / ±2 %
• Measurement presets: Center Spot, Hot Spot, Cold Spot,
• 10 point presets, 1 line preset, 3 area presets
• Interchangeable lenses for different inspection scenarios
• Optical Field of View: 25° × 19°
• 50 Hz frame rate
• 3.5" LCD touchscreen with 640 × 480 resolution
• Integrated laser distance meter
• Wi-Fi connectivity with Viewer App for fast image sharing
• High-temperature audible alarm
• Supports up to 64 GB microSD storage
• IP54 dust and water resistant

Enhanced Thermal Clarity with SuperIR

SuperIR image enhancement technology upscales thermal images from 640 × 480 to 1280 × 960 resolution in live view and still-image capture at a fast 50 Hz frame rate.
A highly sensitive VOx detector ensures clear and detailed thermal imaging.

Five Fast Focusing Modes

Support for five focus modes and a fast focusing time of approximately 2 seconds saves time and delivers sharper images for more accurate temperature measurements.

SENSOR Analyzer Software

Available free of charge for PC and as a mobile app (App Store & Google Play) for live streaming to smartphones or tablets.

Radiometric Video Analysis

Supports recording radiometric videos to the camera’s SD card, including full temperature data for post-analysis using PC software.
Fully compatible with SENSOR Analyzer Software for intuitive visualization, advanced analysis, and processing of thermal data.

Replaceable Battery System

The scope of delivery includes three replaceable Li-ion batteries and a dual charger, providing up to 12 hours of continuous operation—ideal for long inspection sessions.

Integrated Laser Distance Meter

The built-in laser distance meter enables accurate distance and area measurements over long ranges, simplifying parameter setup and report generation.

Advanced Image Fusion Technology

Exclusive Picture-in-Picture (PIP) and image fusion technology combines visible image details with thermal images, improving overall image clarity, contours, and sharpness.

Optional Interchangeable Lenses – The Right Lens for Every Job

Three optional lenses (0.5×, 2×, and 3.3×) are available, offering different fields of view for maximum flexibility in various inspection scenarios.

Thermal Module

• IR Resolution: 640 × 480 (307,200 pixels)
• SuperIR Resolution: 1280 × 960 (1,228,800 pixels)
• NETD: < 35 mK (@ 30 °C, F# = 1.0)
• Frame Rate: 50 Hz
• Pixel Pitch: 17 µm
• Spectral Range: 7.5 – 14 µm
• Focal Length: 25 mm
• F-number: F1.0
• Field of View: 25° × 19°
• IFOV: 0.68 mrad
• Minimum Focus Distance: 0.3 m
• Focus Modes: Laser-Assisted AF / Continuous AF / AF / Manual / Touch AF
• Focusing Speed: Approx. 2 seconds

Optical Module

• Visible Camera: 3264 × 2448 (8 MP)
• Display
• Resolution: 800 × 480
• Screen: 4.3" LCD touchscreen
• Brightness: Manual / Automatic
• Digital Zoom: 1.0× to 8.0× continuous
• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
• Image Modes: Infrared / Visual / Fusion / PIP / Blending

Measurement & Analysis

• Object Temperature Range: −20 °C to 650 °C
• Accuracy: Max. ±2 °C / ±2 %
• Measurement Tools:
• Center, Hot Spot, Cold Spot
• 10 adjustable points
• 1 adjustable line
• 5 rectangles and 5 circles
• Level & Span: Auto / Manual / One-Tap Touch
• Inspection Routes: Yes

Battery

• Battery Type: Replaceable rechargeable Li-ion battery
• Operating Time: Up to 12 hours (continuous operation)

Data Storage & Communication

• Storage Medium: Removable 64 GB microSD card
• Image Capacity: Approx. 60,000 images
• Annotations:
• Voice notes: up to 60 seconds
• Text notes: up to 200 characters
• Video Recording: Approx. 54 hours
• Video Format: MP4 and radiometric video

General

• Wi-Fi: 802.11 b/g/n (2.4 GHz & 5 GHz)
• Bluetooth: Version 4.2
• USB Interface: USB Type-C
• HDMI Interface: Yes
• LED Light: Yes
• Laser: Class II, wavelength 635 nm, power < 1 mW
• Laser Distance Meter:
• Indoor range: 50 m
• Outdoor range: 10 m
• GPS & Compass: Yes
• Battery Charging Time: Approx. 4 hours
• Power Saving Mode: Yes
• Protection Rating: IP54 (IEC 60529)
• Drop Test: 2 m (IEC 60068-2-31)
• Safety: IEC 61010-1
• EMC Compliance: EN 301 489-1 / -17, EN IEC 61000-6-2 / -6-3
• Operating Temperature: −20 °C to +50 °C
• Storage Temperature: −20 °C to +60 °C
• Relative Humidity: < 95 % non-condensing
• Weight: Approx. 1058 g
• Dimensions: 284.7 × 120.6 × 124.5 mm
• Tripod Mount: UNC ¼"

Scope of Delivery

• SENSOR IR-P640 thermal imaging camera
• 3 rechargeable batteries
• External dual battery charger
• Power adapter
• USB cable
• Quick Start Guide
• Hard carrying case with wrist strap
• Calibration certificate
• Software download
